Majorpower 24VDC, 48VDC, 120VDC Industrial Power
Battery Charging, DC / DC Converters, Datacom Inverters
DC Power Solutions from Majorpower - Utility Grade
DC to DC Converters, Battery Chargers, DC Distribution
Requiring assistance in configuring DC power systems for your industrial,
network and communication emergency power requirements ?
SBC Data Power can help by providing industrial grade, cost effective,
DC power solutions from Majorpower, providing solutions for utility,
municipal, industry power needs. Solutions include radio &
network communication, wireless and industrial DC power needs.
Designed for continuous duty applications, where reliable DC power
is a must, Majorpower provides energy efficient DC power systems
providing 24 volt DC, 48 volt DC and 120VDC power, DC to DC power
converters, battery chargers and DC to AC datacom inverters.
Many of the systems include integrated dry contact and SNMP ethernet
communication standard. Please contact us direct for pricing and
application specifics.

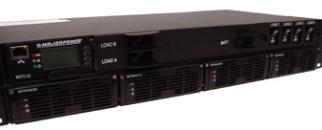

Majorpower Majortel MTS Series -48VDC Power Systems
MajorTel MTS48/50AT-2U, MTS48/75AT-2U, MTS48/100AT-2U
MTS Series 5.8kW 100 Amp Output @ 48VDC Power Plant
The Majorpower MTS Series 2U DC power system provides outputs
from 25 amps, 1,450 watts, to 100 amps, 5,800 watts via power
efficient rectifiers providing redundancy in a compact 2U chassis.
User defined output power configurations include a 50 amp, 2,900 watt
configuration, 75 amp, 4,350 watt configuration and a 100 amp,
5,800 watt configuration.
Features include 25 amp rectifier module redundancy, integrated
DC power distribution, system controller, 48 volt battery charging
and network SNMP and dry contact communication.
Designed to utilize 120VAC, 208VAC or 240VAC input power without
rectifier de-rating, the Major Power MajorTel is also approved for
high temperature deployments, approved for up to 150 degrees.
Overall, a complete power system with rectifier redundancy, circuit
breaker protected output distribution and battery charging capabilities.
Please call us for application specifics.

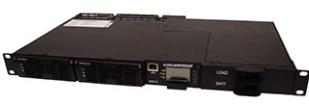

Majorpower MajorTel MTS48/30AT-1U, MTS48/50AT-1U
1,740W 30 Amp & 2,900 W 50 Amp Configuration
The Majorpower MajorTel MTS48/30AT-1U, rated at 1.74kW, 30 amp
output, utilizes 15 amp rated rectifiers and the MTS48/50AT-1U, rated
at 2.9kW, 50 amp, utilizes 50 amp rectifers for a power efficient,
redundant power system in a 1U chassis.
Designed for bulk output deployments, systems provide a 50 amp
output circuit breaker for loads and a 50 amp breaker for battery
charging requirements.
Each is provided with network SNMP and dry contact communication.
Please call us for application specifics.
Majorpower MajorTel MTS48/30BL-1U, 1,740W 30 Amp Output
The Majorpower MajorTel MTS48/30BL-1U DC power system provides
30 amp, 1,740 watt output via redundant 30 amp rectifiers. System
provides a pre-configured DC distribution of qty 2 - 30 amp and
qty 1 - 15 amp output circuit breakers. Also provided is a 30 amp
breaker for battery charging.
The MTS48/30BL-1U utilizes 120VAC, 208VAC or 240VAC electrical
input and includes network communication and onboard status
screen. Please call for application specifics.
• Extended Temperature Operations; Up to 75°C
• Programmable Alarms via 4 sets of Dry-Contacts
• Integrated SNMP RJ45 Network Communication
• Wide AC Range; Full Ouptut Power with 120VAC / 208VAC / 220VAC / 240VAC
Majorpower MDC DC to DC Converter
24VDC , 48VDC & 130VDC to 48VDC & 24VDC
The Majorpower MajorTel DC to DC converter provides voltage conversion
for industrial power deployments that require conversion from 130 volt DC
24 volt DC or 48 volt DC. DC converters systems provide 25 amp or 50 amp
output configurations are designed for applications in IT, telecom, cable and
utility needs. Please contact us for pricing and application specifics.
Integrated standard into this 1U chassis are dual circuit breaker output circuits,
digital quick reference status display, regulated voltage output, low current
protection, and dry contact communication.
Majorpower Converters 130VDC to 48VDC
Model DC Input DC Output Output Capacity
MTD48/25-130-1U 130VDC 48VDC 25 Amps
MTD48/50-130-1U 130VDC 48VDC 50 Amps
Majorpower Converters 130VDC to 24VDC
MTD24/25-130-1U 130VDC 24VDC 25 Amps
MTD24/50-130-1U 130VDC 24VDC 50 Amps
Output voltage is maintained within 1% for all line and load conditions
and the output is well filtered, allowing use with sensitive transceivers
and telecom equipment. Please call for application specifics.
Majorpower Majorsine Datacom Inverters - 800 Watt & 1600 Watt
Solutions for 24 Volt 48 Volt & 120 Volt DC Power
The Majorpower Majorsine datacom inverter provides true sine
wave 120VAC or 208VAC output power for computers, network
servers and communication devices from a - 48 volt, 24 volt or 120 volt
DC battery system.
Designed for telcom, communication and utility company applications
where reliable AC power is a must, these datacom inverters are designed
for continous duty, industrial grade network devices.

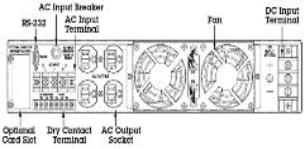

Majorsine Inverter Operates on DC or AC Input
The Majorsine inverter provides for NEMA 5-15R receptacles and/or
hardwire output. Unit can utilize AC input for use as a built-in emergency
and maintenance bypass switch standard. Additional features include LCD
display, network SNMP communication and rack mounting options.
-48 Volt Models Output Output Voltage DC Input
MAJORSINE1000-48-2U 1000VA / 800 W 120VAC -48 Volt
MAJORSINE2000-48-2U 2000VA / 1500 W 120VAC -48 Volt
24 Volt Models Output Output Voltage DC Input
MAJORSINE1000-24-2U 1000VA / 800 W 120VAC 24 Volt
120 Volt Models Output Output Voltage DC Input
MAJORSINE1000-125-2U 1000VA / 800 W 120VAC 120 Volt
MAJORSINE2000-125-2U 2000VA / 1500 W 120VAC 120 Volt
To Download the Majorpower Brochure, Click Here
New and Replacement Batteries
SBC Data Power assists clients with new and replacement batteries for DC power
systems, including 12 volt, 24 volt, 48 volt and 120 volt battery systems. SBC
Data Power represents leading manufacturers Deka East Penn Manufacturing,
MK Battery and B&B Battery. For new or replacement batteries, please contact us.
For Sales and Technical Assistance,
Please Call Us @ 949 646-8191
Email Contact: cthompson@sbcdatapower.com
